15-node microgrid
Solar yield, duck-curve demand, battery state, reserves, and injected disturbances produce the controller state.
The engineering thesis
Treat energy coordination as a closed-loop systems problem, not a blockchain dashboard.
Gridium explores how physical state, market incentives, and privacy-preserving settlement could share one architecture. A Python environment simulates generation, demand, storage, and AMM reserves. A DDPG actor adjusts swap fees continuously. A gateway broadcasts state to a 3D operator interface while Solidity and Circom model the settlement boundary.
This is a systems prototype, not a grid-control product. Its technical value is the integration contract between simulation, control, realtime UX, and on-chain logic.
My contributionPython AI engine, backend integration, and 3D visualization
I implemented the FastAPI simulation loop, PyTorch DDPG actor-critic path, Node gateway integration, and React Three Fiber grid view. Yash Pandit led contracts and zero-knowledge work; Sanket Deka worked on frontend and UI/UX.
Runtime topology
A four-runtime control loop
Each runtime has a narrow contract. That keeps high-frequency simulation, browser rendering, proof generation, and EVM state from becoming one fragile process.
AI engine
FastAPI, Gym environment, PyTorch DDPG
→
Gateway
Node.js, REST polling, Socket.io fan-out
→
Command center
React, Zustand, React Three Fiber
→
Settlement
Solidity AMM, access roles, Groth16 verifier
DDPG actor-critic
A seven-value observation maps to one bounded swap-fee action. Replay memory and soft target updates support continuous learning.
Constant-product AMM
Energy and stable reserves follow the x × y = k invariant with fee accrual, slippage guards, and non-reentrant swaps.
Groth16 surplus proof
The circuit exposes claimed surplus while keeping solar and load inputs private, then gates a contract path through a verifier.
Controller design
Why the RL problem is continuous
Observation
[load, generation, imbalance, energy reserve, stable reserve, price, aggregate SoC]Action
swap fee in [0.10%, 5.00%]Reward
balance - energy waste - price volatility01
Observe the physical and market state together
The environment does not optimize price in isolation. Load, generation, imbalance, reserves, price, and battery state form a seven-dimensional observation.
02
Produce a bounded fee, not a discrete mode
The actor emits one normalized action and maps it into the permitted fee range. Continuous control avoids forcing the market into a handful of abrupt fee buckets.
actor(state) → sigmoid action → 0.001 + action × 0.04903
Learn through an actor and a critic
The critic estimates the value of a state-action pair. Replay memory breaks temporal correlation, Ornstein-Uhlenbeck noise supports exploration, and Polyak updates stabilize the target networks.
04
Broadcast the resulting state
The Node gateway polls /tick every 500 ms and fans the state out through Socket.io. Zustand updates the UI while React Three Fiber renders energy flow and node behavior.

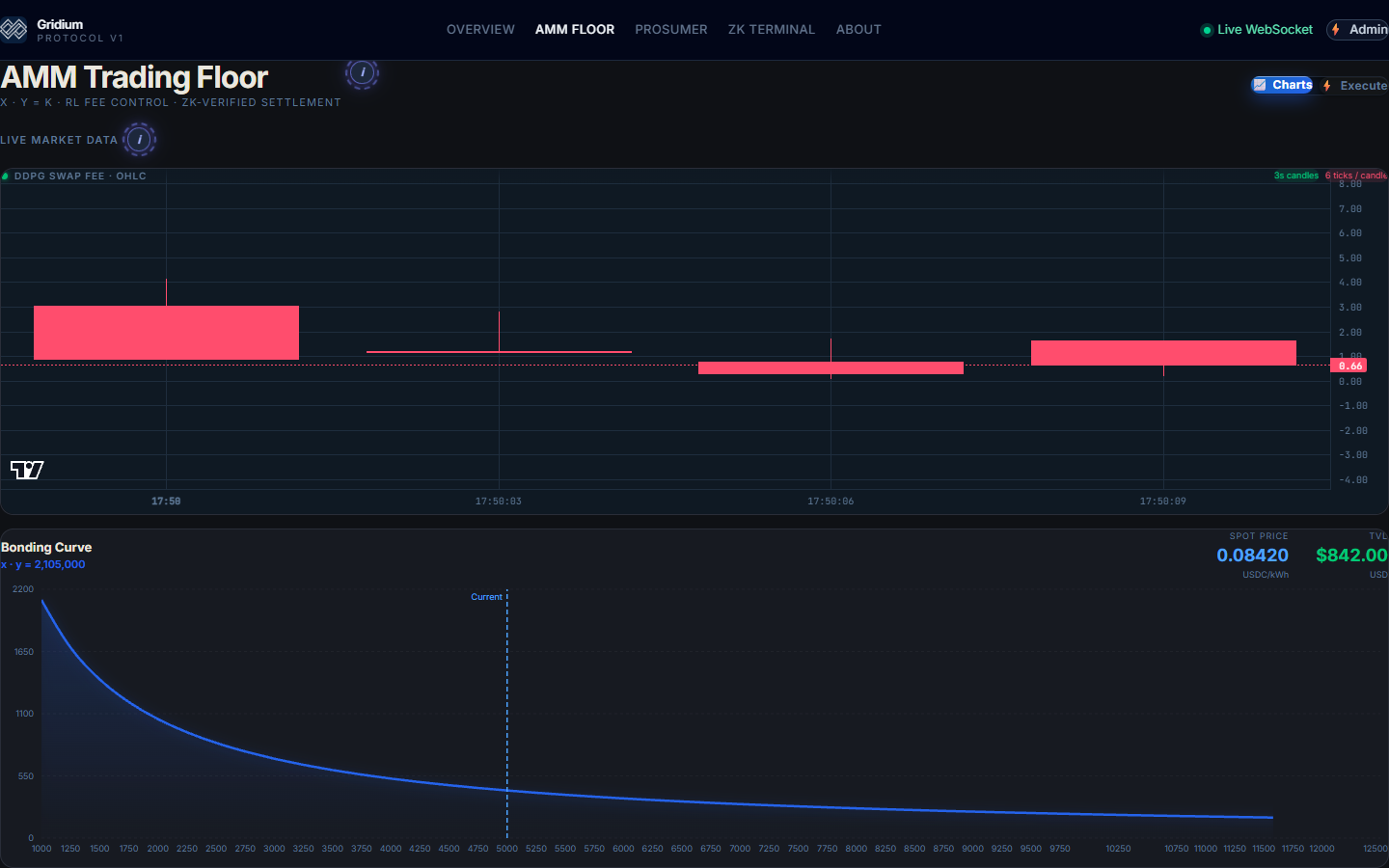

Product surfaces
One model, two operator views
Settlement boundary
What the contract and circuit actually enforce
Reserve integrity
Bidirectional energy/stable swaps update reserves under a constant-product rule. Minimum-output parameters protect users from unacceptable slippage and nonReentrant guards transfer paths.
Role-bounded fee updates
Only the RL_OPERATOR_ROLE can update the swap fee, and the contract clamps it between 10 and 500 basis points.
Private arithmetic relation
The Circom circuit proves amount_to_sell = total_solar - total_load without publishing the two private inputs. The AMM can call a Groth16 verifier before proof-gated liquidity.
Important boundary
The current circuit proves an arithmetic relationship; it does not prove sensor authenticity, location, meter ownership, or that the private inputs came from trusted hardware. Those require oracle and attestation design beyond this prototype.
Implementation map
Where the advanced pieces live
| Subsystem | Source | Responsibility | Technical detail |
|---|---|---|---|
| Physics environment | ai-engine/aegis_env.py | State, disturbances, reward, action bounds | Gym-compatible seven-dimensional observation |
| DDPG agent | ai-engine/ddpg_agent.py | Actor, critic, replay, targets | Continuous one-dimensional action with OU exploration |
| Realtime engine | ai-engine/main.py | Tick loop and chaos endpoints | FastAPI state service and WebSocket endpoint |
| Gateway | backend/index.js | REST polling, Socket.io, proof endpoint | 500 ms fan-out with mock/event fallback paths |
| Market contract | AegisAMM.sol | Liquidity, swaps, fee control | AccessControl, ReentrancyGuard, slippage checks |
| Proof circuit | energy_proof.circom | Surplus relation | Two private signals and one public output |
| 3D interface | MicrogridCanvas.tsx | Node topology and energy flow | React Three Fiber driven by Zustand state |
Engineering judgment
Integrated prototype, explicit simulation boundary
A working multi-runtime systems prototype
- Closed-loop Python simulation and continuous controller
- Realtime gateway and 3D operator interface
- Constant-product Solidity market with control roles
- Groth16 proof-generation and verification path
- Chaos controls and mock-mode fallback for demonstration
Not yet a validated energy-control protocol
- No comparison against rule-based or model-predictive control baselines
- Some event-feed entries are generated for the demonstration UI
- The circuit lacks trusted-meter attestation and stronger range constraints
- Contract, controller, and adversarial tests need a frozen evaluation suite
Next engineering milestone
Freeze deterministic scenarios, compare DDPG against PID and rule-based controllers, add contract invariants and circuit tests, then measure imbalance, volatility, proof latency, and recovery under the same disturbances.
